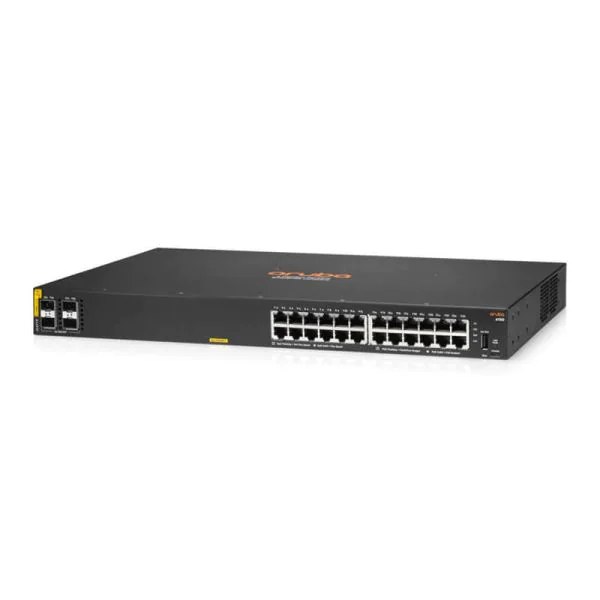

Aruba 6100 24G 4SFP+ Switch

Ask for more on Whatsapp

Features

● Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing

● Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices

● Compact and fanless 12 port model for quiet deployment

● Automated configuration and verification with Aruba NetEdit

● Software defined ready with REST APIs

● Simplify adds, moves and changes with colorless ports

The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.

Table 1 shows the Quick Specs.

Product Code	JL678A
Number of Total Expansion Slots	24
Product Family	6100
Power Consumption	32.70 W
Power Source	Power Supply

JL678A Specification

JL677A Specification
Product Name	Aruba 6100 24G CL4 4SFP+ Switch PL-W8
Manufacturer Part Number	JL678A
Product Type	Ethernet Switch
Manageable	Yes
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Number of Total Expansion Slots	4
Product Family	6100
Media Type Supported	Twisted Pair Optical Fiber
Total Number of Network Ports	24
PoE (RJ-45) Port	Yes
Expansion Slot Type	SFP+
Form Factor	Rack-mountable Wall Mountable
Power Consumption	32.70 W
Power Source	Power Supply
Layer Supported	3
Environmentally Friendly	Yes
Compatible Rack Unit	1U
Number of Power Supplies Supported	1
Number of Power Supplies Installed	1
Number of SFP+ Slots	4
Modular	Yes
Uplink Port	Yes
Port / Expansion Slot Details	24 x Gigabit Ethernet PoE 4 x 10 Gigabit Ethernet Expansion Slot 24 x Gigabit Ethernet PoE 4 x 10 Gigabit Ethernet Expansion Slot
PoE Budget	370 W
Height	1.7″
Width	17.4″
Depth	10.6″
Product Series	6100
Network Technology	10/100/1000Base-T 10GBase-X 10/100/1000Base-T 10GBase-X
Input Voltage	120 V 230 V 120 V AC 230 V AC
Limited Warranty	Lifetime
Frequency	50 Hz 60 Hz 50 Hz 60 Hz
